使用Servlet显示图片

在本文的示例中,我们使用FileInputStream类读取图像,并使用ServletOutputStream类将此图像内容作为响应写入。为了提高性能,我们使用了BufferedInputStream和BufferedOutputStream类。

1 准备需要显示的图片

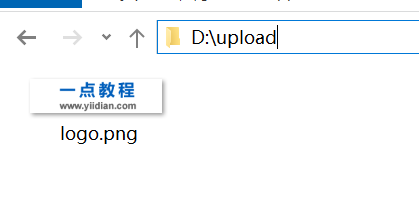

提前在D盘的upload目录中准备一张图片(注意:根据自身情况准备即可):

2 编写index.jsp

index.jsp:

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>一点教程网-使用Servlet显示图片</title>
</head>
<body>
<h1>使用Servlet显示图片</h1>
<a href="DisplayImage">显示图片</a>
</body>
</html>

3 编写DisplayImage

DisplayImage用于读取图片,并显示到用户:

import com.lowagie.text.Document;
import com.lowagie.text.Font;
import com.lowagie.text.PageSize;
import com.lowagie.text.Paragraph;
import com.lowagie.text.pdf.BaseFont;
import com.lowagie.text.pdf.PdfWriter;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.awt.*;
import java.io.*;
import java.util.Iterator;
import java.util.List;

/**
 * 一点教程网 - http://www.yiidian.com
 */
public class DisplayImage extends HttpServlet {

    public void doGet(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        response.setContentType("image/png");
        ServletOutputStream out;
        out = response.getOutputStream();
        FileInputStream fin = new FileInputStream("d:\\upload\\logo.png");

        BufferedInputStream bin = new BufferedInputStream(fin);
        BufferedOutputStream bout = new BufferedOutputStream(out);
        int ch =0; ;
        while((ch=bin.read())!=-1)
        {
            bout.write(ch);
        }

        bin.close();
        fin.close();
        bout.close();
        out.close();
    }
}

4 配置web.xml

web.xml:

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <servlet>
        <servlet-name>DisplayImage</servlet-name>
        <servlet-class>DisplayImage</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>DisplayImage</servlet-name>
        <url-pattern>/DisplayImage</url-pattern>
    </servlet-mapping>

</web-app>

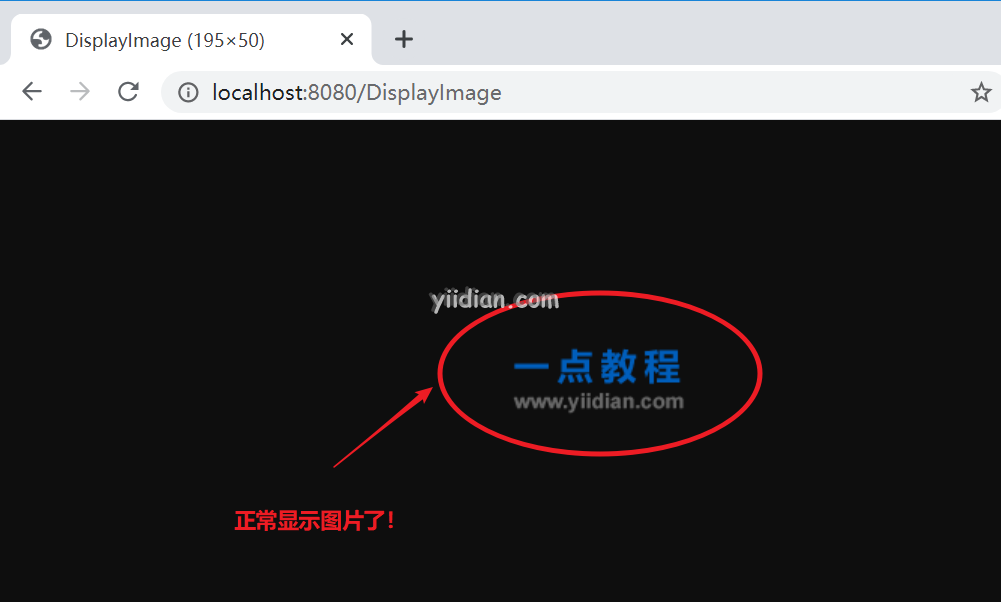

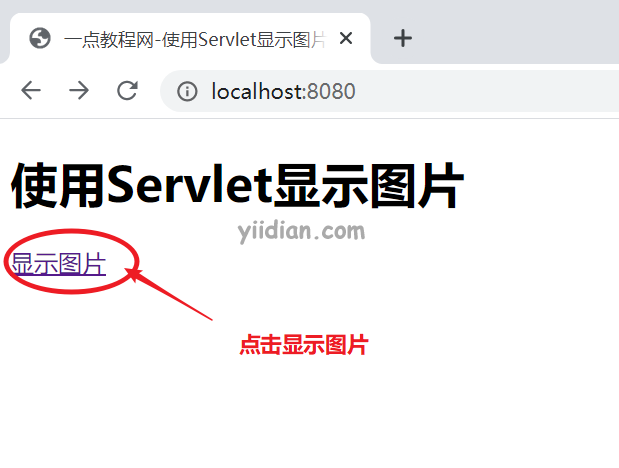

5 运行测试
