m = [98.75, 97, 96.66, 42, 9, 4, 1,98.33, 95, 93.33, 44, 7, 4, 1,95,94,87.5, 38.33, 5, 0,
0,95, 93, 85, 35.55,5,0,0,95,92,83,30,3.33,0,0,95,91,80,28,1.66,0,0,95,90,75,21.25,1.66,0,0]
从上面的列表中，我需要创建一个7x7的矩阵，如下所示:
[,1] [,2] [,3] [,4] [,5] [,6] [,7]
[1,] 98.75 98.33 95.00 95.00 95.00 95.00 95.00
[2,] 97.00 95.00 94.00 93.00 92.00 91.00 90.00
[3,] 96.66 93.33 87.50 85.00 83.00 80.00 75.00
[4,] 42.00 44.00 38.33 35.55 30.00 28.00 21.25
[5,] 9.00 7.00 5.00 5.00 3.33 1.66 1.66
[6,] 4.00 4.00 0.00 0.00 0.00 0.00 0.00
[7,] 1.00 1.00 0.00 0.00 0.00 0.00 0.00

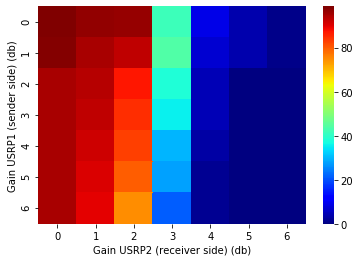

需要从矩阵中生成如下图像:
首先，使用numpy将列表转换为数组，然后使用reshape，然后使用您最喜欢的包进行绘图。 seaborn或matplotlib:
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
m = [98.75, 97, 96.66, 42, 9, 4, 1,98.33, 95, 93.33, 44, 7, 4, 1,95,94,87.5, 38.33, 5, 0,
0,95, 93, 85, 35.55,5,0,0,95,92,83,30,3.33,0,0,95,91,80,28,1.66,0,0,95,90,75,21.25,1.66,0,0]
data = np.asarray(m).reshape(7,7)
sns.heatmap(data, cmap = 'jet')
# plt.imshow(data)
plt.xlabel('Gain USRP2 (receiver side) (db)')
plt.ylabel('Gain USRP1 (sender side) (db)')

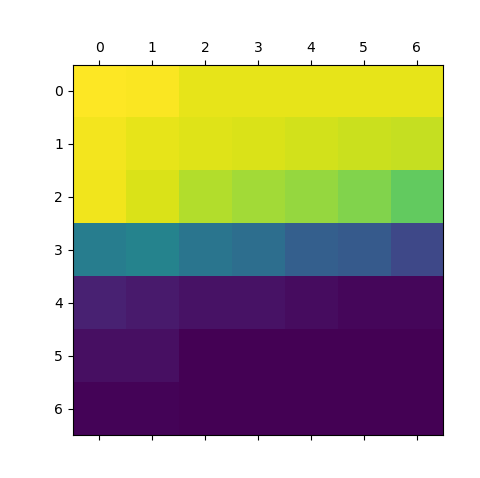

我喜欢使用plt.matshow():
import numpy as np
import matplotlib.pyplot as plt
m = [98.75, 97, 96.66, 42, 9, 4, 1,98.33, 95, 93.33,
44, 7, 4, 1,95,94,87.5, 38.33, 5, 0, 0,95, 93,
85, 35.55,5,0,0,95,92,83,30,3.33,0,0,95,91,80,28,
1.66,0,0,95,90,75,21.25,1.66,0,0]
plt.matshow(np.array(m).reshape(7, 7).T)
plt.show()
