提问者:小点点

如何设置AlertDialog的自定义布局?


调用我的对话框:

alertDialog = showInfoDialog(message = "$wrongPasscodeMessage\n$retryMessage")

方法如下:

fun FragmentActivity.showInfoDialog(message: String?): AlertDialog? {
    return try {
        val customLayout = layoutInflater.inflate(R.layout.custom_layout, null)
        AlertDialog.Builder(this)
            .setView(customLayout)
            .setMessage(message)
            .setCancelable(false)
            .show()
    } catch (e: java.lang.Exception) {
        e.log()
        null
    }
}

下面是我的自定义布局:

<?xml version="1.0" encoding="utf-8"?>
<androidx.cardview.widget.CardView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/red"
    android:paddingStart="@dimen/dp_44"
    android:paddingEnd="@dimen/dp_44"
    app:cardCornerRadius="@dimen/dp_12" />

但是我不知道为什么我的对话框没有背景红色和圆角? 我错过了什么?

更新:例如,如果我更改了我的custom_layout:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/red" >

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="350dp"
        android:scaleType="centerCrop"
        android:adjustViewBounds="true"
        android:src="@drawable/googleg_disabled_color_18"/>
</LinearLayout>

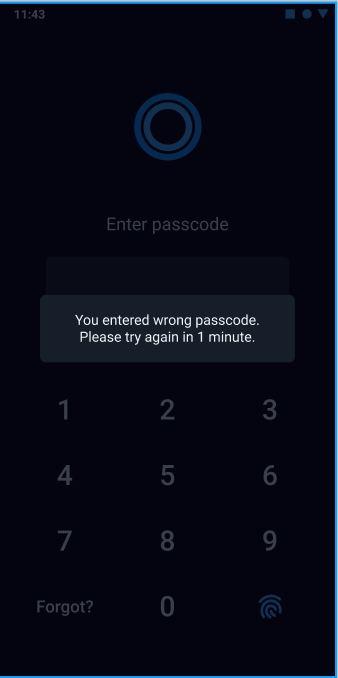

但我想要这样的smth


共2个答案

匿名用户

按照如下所示创建一个可绘制的XML:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
    <solid android:color="@color/colorPrimary"/>
    <corners android:radius="20dp" />
</shape>

形状中的半径提供圆角。 现在,您可以将此drawable设置为对话框的LinearLayout的背景,或者在res/styles.xml中使用自定义的
